EWAG, No. EWAMATIC, NUM NUMROTO 1060II, 1999, 12k RPM, Robot loading,   Our stock number: 392268

EWAG, No. EWAMATIC, NUM NUMROTO 1060II, 1999, 12k RPM, Robot loading,

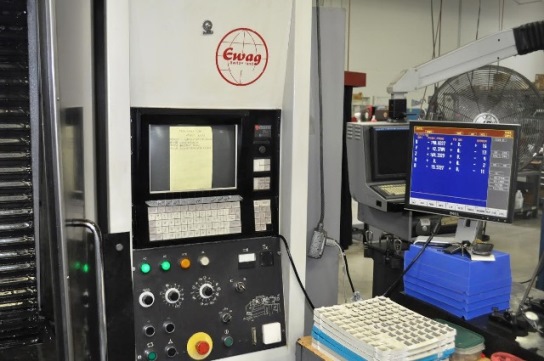

Click on picture below for larger version
EWAG, No. EWAMATIC, NUM NUMROTO 1060II, 1999, 12k RPM, Robot loading,

General Specifications As Per Brochure (Buyers are responsible for confirming

all details below)

Equipped With:
    NUM Numroto 1060/II CNC Control
    512 kB of RAM/ 200 kB by EWAG-SOFT/ 300 kB free for specific progrms
    High Level Software Option
    PEK Axis
    Robot Loading Cell (Currently non functional)
    EBBCO coolant system with 5 micron filtration system
    Full Enclosure
    Double V Reciprocating Linear Roller Bearings
    Direct Measuring Glass Scale
    AC Servo Motor Couple3d Directly With Ball Screw

Specifications:
    X-axis:                                 14.7"
    Y-axis:                                 5.9"
    Z-axis:                                 9.05"
    Axis resolution mm:                     0.000004"
    B-axis, swivelling range degrees:       +- 120 deg
    Axis resolution degrees:                0,0001
    Rapid Feed:                             6500deg/min
    Number of revolutions area spindle:     1000 - 12000 RPM
    Number of revolutions C axis (max.):    800 - 1000 RPM
    Voltage:                                400V/50Hz
    Machine Dimensions:                     3265 x 2920 x 2490
    Grinding head SK 2000 Degrees:          -15...+25
    Grinding spindle drive kW:              7,5
    Grinding wheel diameter max. mm:        250
