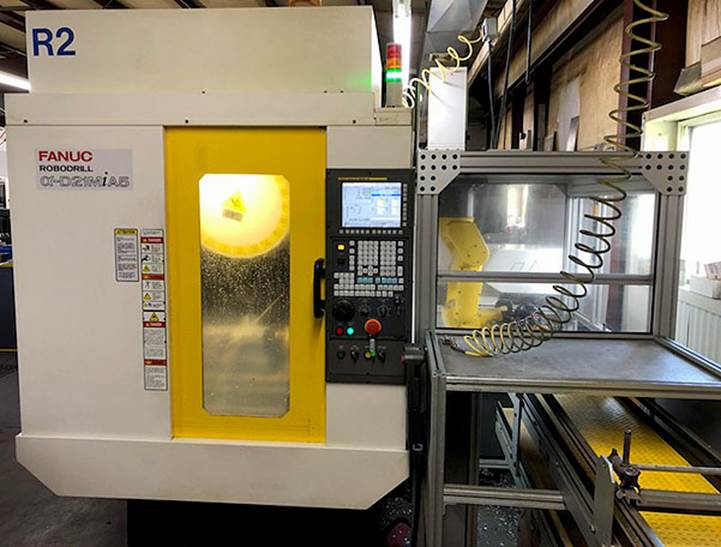

Fanuc Robodrill D21MiA5, Fanuc 31iB5, 2013, Robotic Work Cell, 24,000RPM Automatics & Machinery Co Inc

Fanuc Robodrill D21MiA5, Fanuc 31iB5, 2013, Robotic Work Cell, 24,000RPM Our stock number: 402110

Fanuc Robodrill D21MiA5, Fanuc 31iB5, 2013, Robotic Work Cell, 24,000RPM

Click on picture below for larger version

Click the link below to view a video demonstration of this

machine:

https://youtu.be/rNpRPPJKM9E

To the best of our knowledge all details listed below are deemed correct.
It is the buyers responsibility to confirm ALL details prior to purchase.

Specifications:
Travels
  X-Axis:                                   19.68"
  Y-Axis:                                   15.74"
  Z-Axis:                                   12.9"
  Table Top to Spindle End:                 5.9"-18.89"
  Spindle Center to Column Guidway:         14.96"
  Table Size:                               25.6" x 15.74"
  Table Load Capacity:                      660 lbs
  Table Surface Configuration:              3 T-slots, Spacing 125mm apart
  Spindle Type:                             Cartride Style Direct Drive
  Spindle Taper:                            BT30
  Dual Contact:                             Taper / Face "Big Plus"
  Bearings:                                 (4) Ceramic Greased Packed+
  Spindle Speed:                            200-24,000 rpm
  Accel time:                               .7 sec
  Max Rigid Tapping Speed:                  8,000 rpm
  Acc Time 0 to 8,000 rpm:                  .17 sec
  Spindle Motor:                            Fanuc AC
  Spindle Motor:                            10 min. rating
  Direct Drive:                             High Torque
Feedrate
  Rapid Feedrate (X/Y/Z):                   2125 in/min
  Cutting Feedrate (X/Y/Z:                  0.1-1181"
  Continuous Manual Feedrate:               0-157"
  Automatic Tool Changer Number of Tools:   21
  Machine approx. Dimensions:               98" w x 111" Deep 108" tall
  Infeed Link Belt conveyor for robot:      12" x 60"
  Outfeed Link Belt conveyor for robot:     12" x 72"
  Approx. Weight:                           4,870

Equipped With:

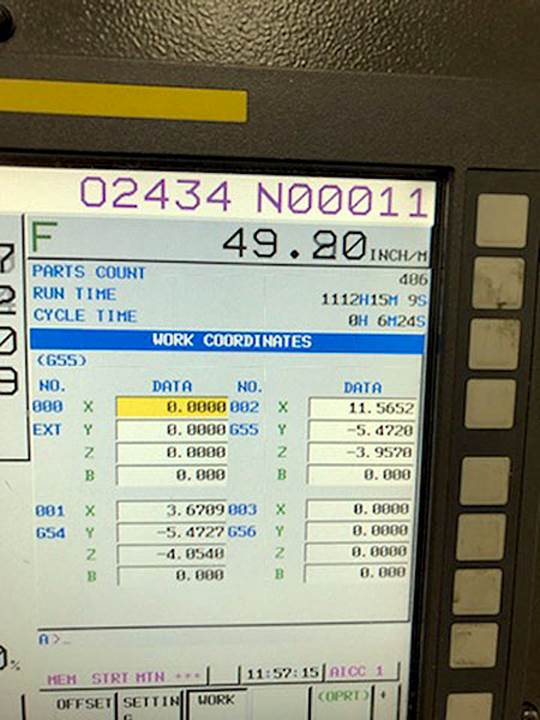

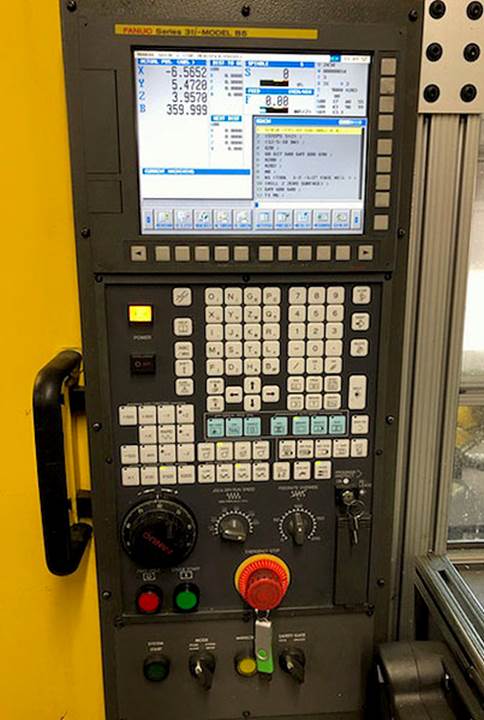

  Fanuc 31i-B5 CNC Control
  Robotic Job Shop Work Cell

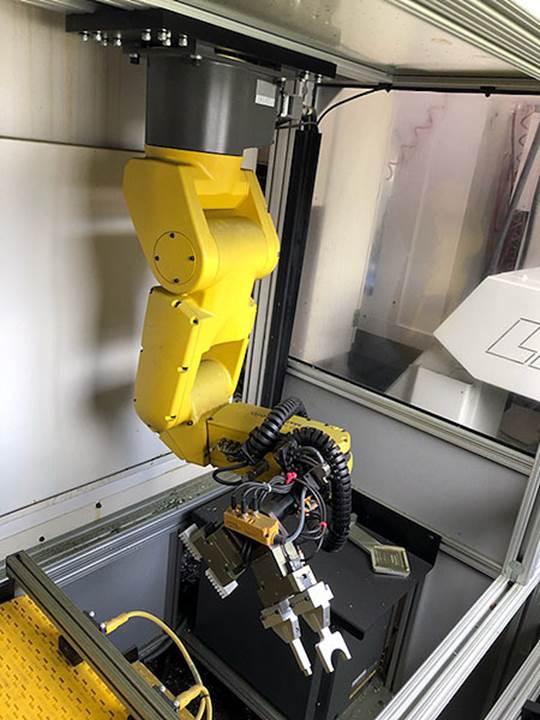

  Robot Type Fanuc LR mate 200-IC
  Fanuc DDR 260iB High Speed 4th Axis
  Schunk pneumatic Vises
  LNS Lift Up Chip Conveyor
  Renishaw TS27R Broken Tool Detection

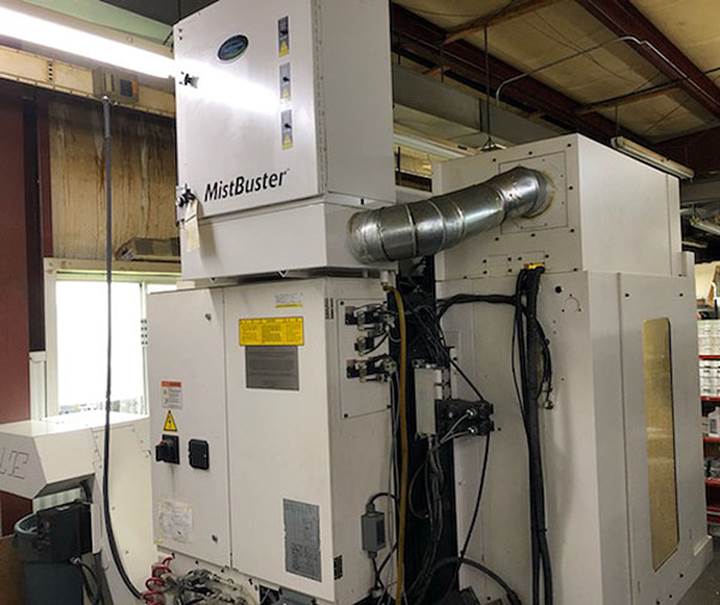

  Mist Collector
  110 mm Riser Installed
  Air Blow installed on Spindle Head
