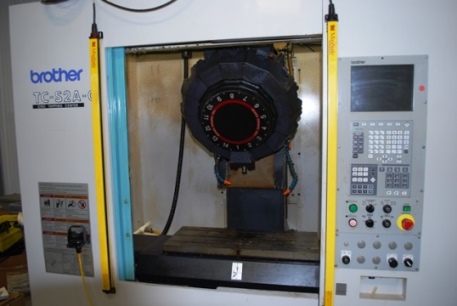

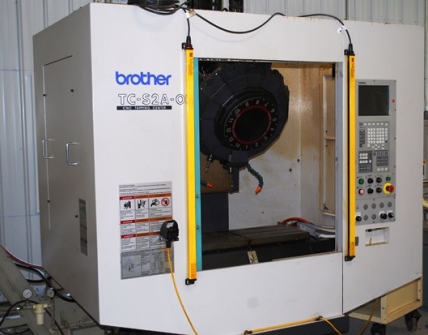

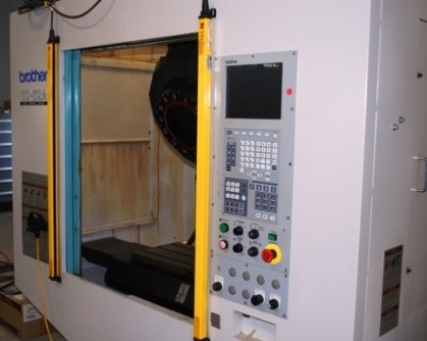

BROTHER,TC-S2A0,CNC-A00, 2000, 27"x14"x10" travel, BT30, 14 pos turret, 10K rpm   Our stock number: 393598

BROTHER,TC-S2A0,CNC-A00, 2000, 27 x14 x10 travel, BT30, 14 pos turret, 10K rpm

Click on picture below for larger version
BROTHER,TC-S2A0,CNC-A00, 2000, 27 x14 x10 travel, BT30, 14 pos turret, 10K rpmBROTHER,TC-S2A0,CNC-A00, 2000, 27 x14 x10 travel, BT30, 14 pos turret, 10K rpmBROTHER,TC-S2A0,CNC-A00, 2000, 27 x14 x10 travel, BT30, 14 pos turret, 10K rpm
BROTHER,TC-S2A0,CNC-A00, 2000, 27 x14 x10 travel, BT30, 14 pos turret, 10K rpmBROTHER,TC-S2A0,CNC-A00, 2000, 27 x14 x10 travel, BT30, 14 pos turret, 10K rpm

Equipped With:

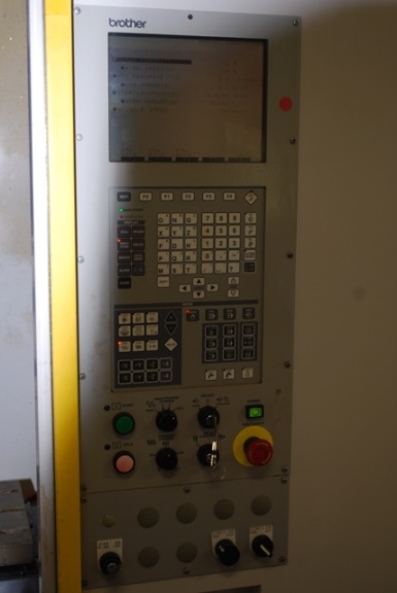

   Brother CNC A00 Control
   Turbo Microfine Conveyor
   Misc BT30 Tooling
   Coolant Tank
   BT30 Tooling Approx 40 pieces

General Specifications for Brother TC-S2A-0
CNC Control:                          Brother CNC-A00
Travels:
   X axis:                            27.6"
   Y axis:                            14.2"
   Z axis:                            10.6"

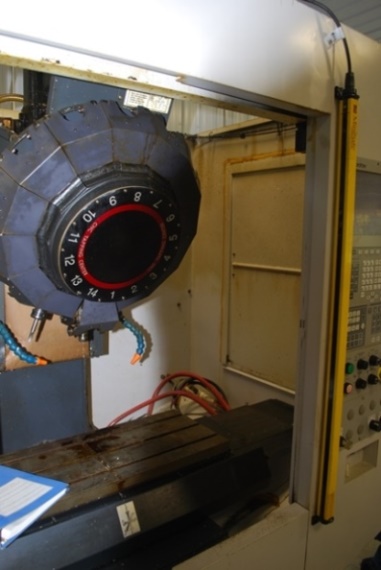

   Number of Turret Postions:         14
   Table dimensions:                  12" x 31"
   Toolholders:                       BT30 tool shank
   Max Speed:                         10,000 RPM
   Max feed rate:                     3000 mm/min
   Rapids:                            30,000 mm/min
   Spindle Motor:                     6.7hp
   Power:                             230/3/50/60
   Machine weight:                    5000 lbs
   Machine dimensions(inches)         104" x 75" x 96" H
