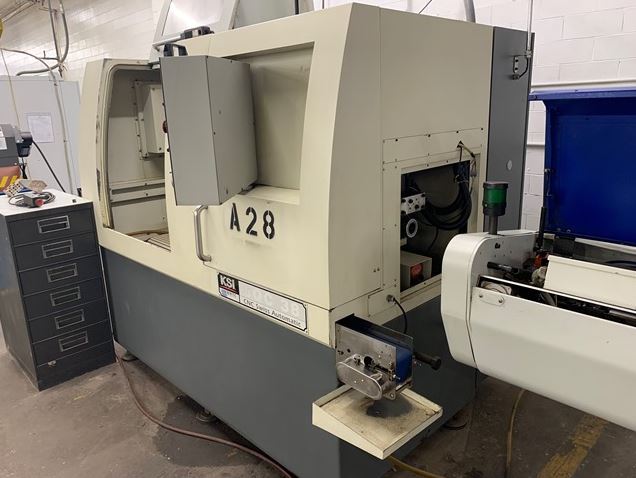

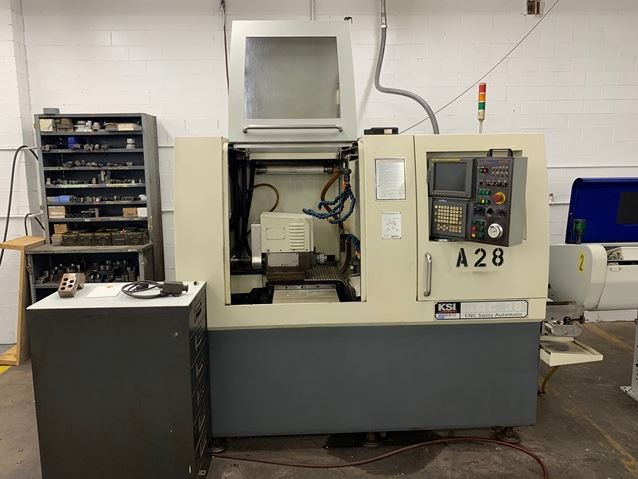

1-1/2" KSI SQC38, Fanuc 18iTB, 2006, 4Live/6OD/5+1+2ID/1+3BW, C Main/Sub, loader Automatics & Machinery Co Inc

1-1/2" KSI SQC38, Fanuc 18iTB, 2006, 4Live/6OD/5+1+2ID/1+3BW, C Main/Sub, loader Our stock number: 402743

1-1/2 KSI SQC38, Fanuc 18iTB, 2006, 4Live/6OD/5+1+2ID/1+3BW, C Main/Sub, loader

Click on picture below for larger version

To the best of our knowledge all details listed below are deemed correct.
It is the buyers responsibility to confirm ALL details prior to purchase.

LIVE CROSS, FACE & BACK WORKING

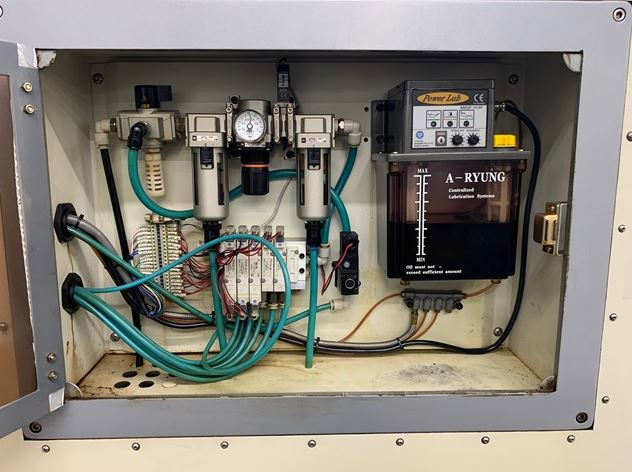

Equipped With:

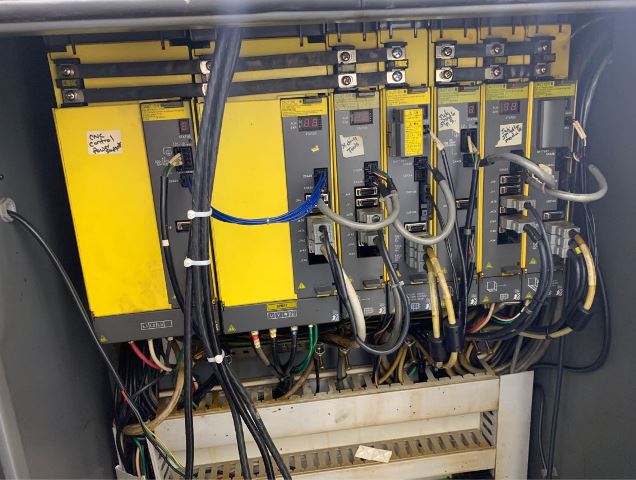

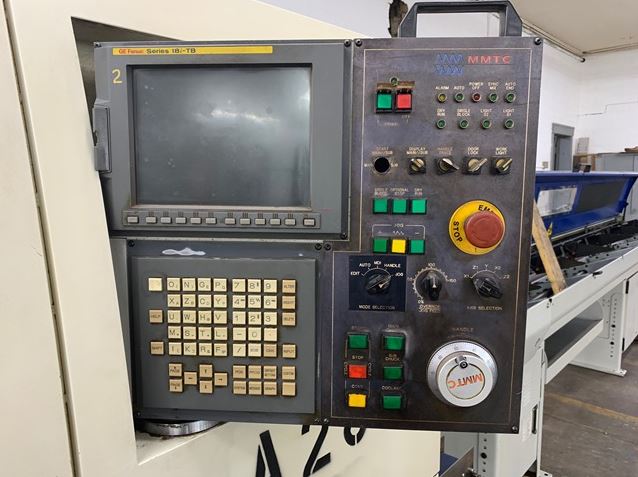

   Control Fanuc 18-iTB (7-axis)

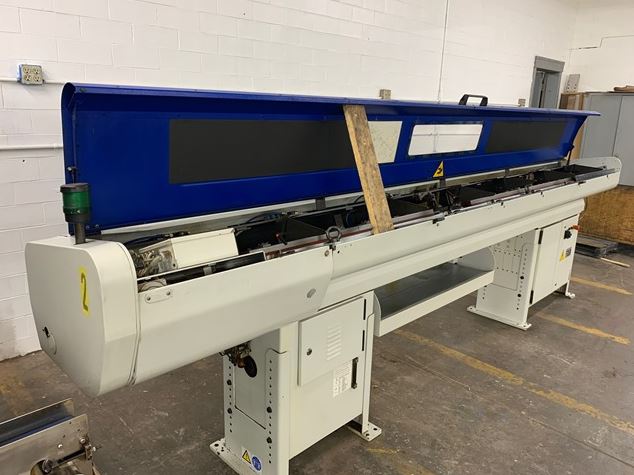

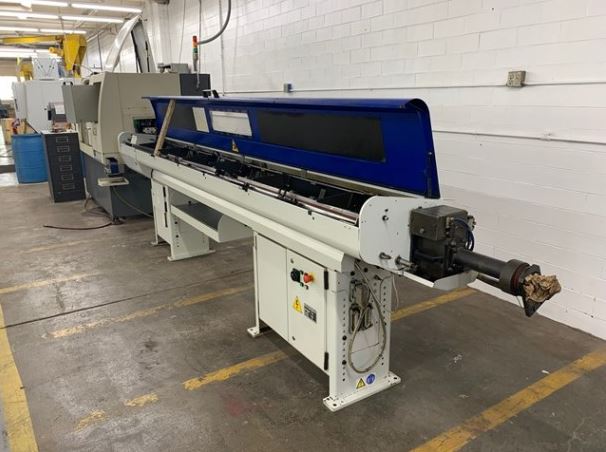

   Iemca Boss 551E Magazine Barfeed w/signal light s/n A05082301
    w/ 43 & 28mm Guide Channels & pusher sets
   Parts Catcher
   Parts Conveyor
   Sub Spindle Ejector
   All Live Spindles Have Rigid Tap

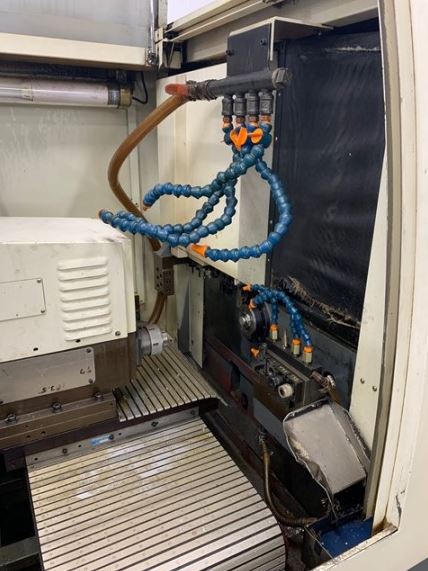

   9 Live Tool Capable (Installed Live Tools; 4 Cross/2 Face/2 BW)

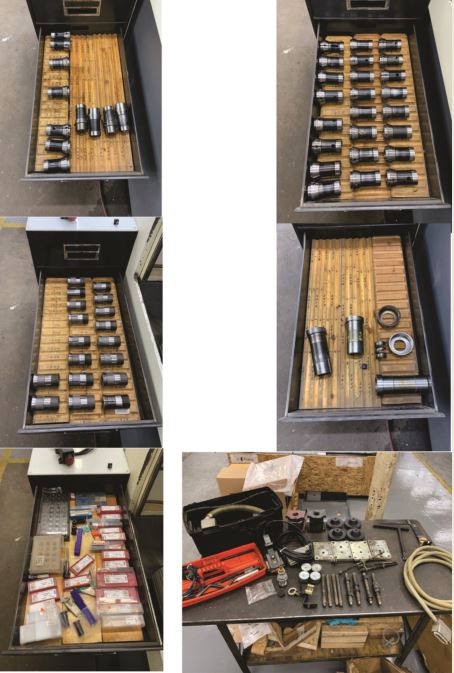

   Misc Collets & Guide Bushings (see below) list to include the follow
    (List may not be exact):
used collets TF48/B42:
7/16" HX (2) 1/2"  (3) 35/64"
.866"  .884"  .884"EN  1"  1"EN
1.038" 1-3/16"  1-1/4"  1-1/2"  1-1/2"EN

used guide bushing TD38:
5/16"  5/16"XP  (2) 3/8"  7/16"HX  (2) 1/2"  5/8"  11/16"  3/4"
1"  1-1/16"  1-1/8"  (2) 1-1/4"  1-1/2"(St)

****
Options, ask for quotes for the following:
   High pressure coolant system by ChipBlaster
   LNS Turbo Chip Conveyor, standard or MicroFilter type
   Tooling for your part set-up

===========================================

Main Spindle
Max Bar Diameter                                 38mm (1.5")
Max Machining Bar Length (1) Chucking            8.26"
Main  Drill/Tap                                  12mm/M10
Cross Drill/Tap                                  10mm/m8
Main Spindle Positioning C Axis                  .001"
Main Spindle Speed                               8,000 RPM
No. Main Spindle Turning Tools (Fixed)           5 Standard
Tool Shank Size                                  12mm
Main Spindle Cross Live Tools (Live)             4 Standard
No. Y Axis Tool Block (Fixed)                    5 Standard
Headstock Collett                                TF 48
Guide Bushing Capacity                           1 1/2" (TD38S)

Sub Spindle
Sub Spindle Chucking Diameter                    38mm
Sub Spindle Speed                                8,000 RPM
Sub Spindle Positioning C Axis                   .001"
Back-end Face Drill/Tap                          10mm/m8
Spindle RPM Mill/Drill Main & Sub                8,000 RPM
Back Working Live Spindle Mill/Drill             4,000 RPM
No. Face Tools (Sub Spindle) (Fixed)             1 Standard
No. Face Tools (Sub Spindle) (Live)              2 Standard
No. Face Tools (Back End) (Live)                 3 Standard
No. Face Tools (Back End) (Fixed)                1 Standard
Sub Spindle Collet                               TF 44

Total No. of Fixed Tools                         12 Standard
Total No. of Live Tools                          9 Standard
Total No. of Tools                               21 Standard

Mechanical Driven Rotary Guide Bushing           Standard
Main Spindle Horsepower                          7.5 HP
Sub Spindle Horsepower                           3.5 HP
Cross Drill/Mill Unit                            1.5 HP
Back End Face Tools                              1.3HP
Machine Electronics                              220/3/60

Machine:  97" x 62" x 77" 9,500 lbs
Chip/Coolant Pan:  52" x 48" x 15" 500 lbs
Barfeed:  192" x 26" x 53" 2,000 lbs
