Use the link below to view a video demonstration of this machine.
https://youtu.be/XJAa20CMHlc
Specifications are from OEM Brochure and Equipped With items are described to
the best of our knowledge. ALL items show be confirmed by the buyer.
Equipped With:

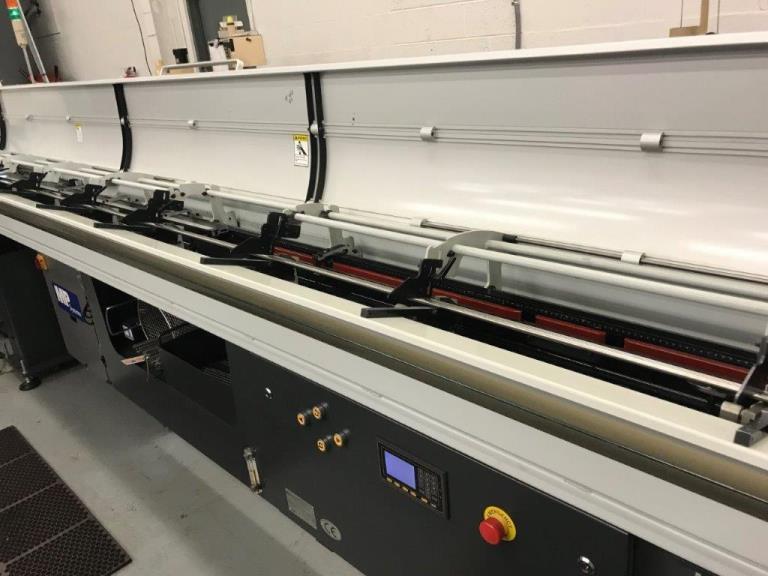

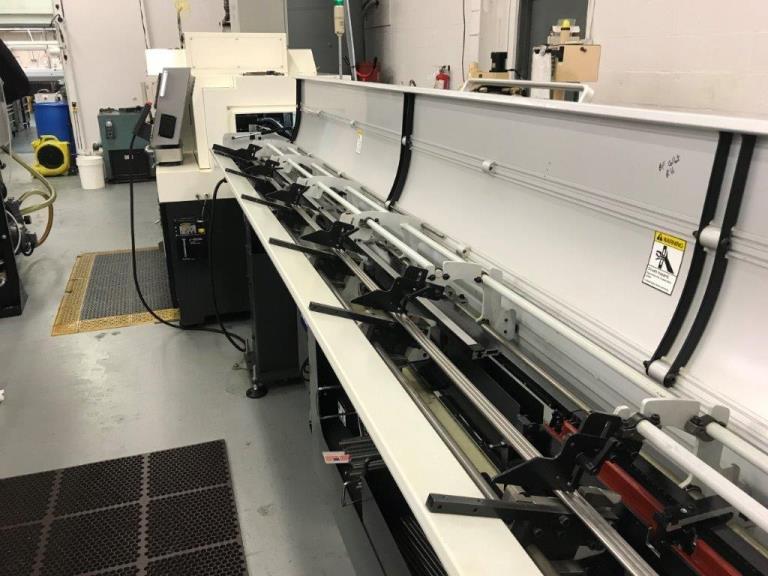

Tracer Style Magazine Bar Feed
LNS Chip Conveyor
TriMist 850 Mist Collector

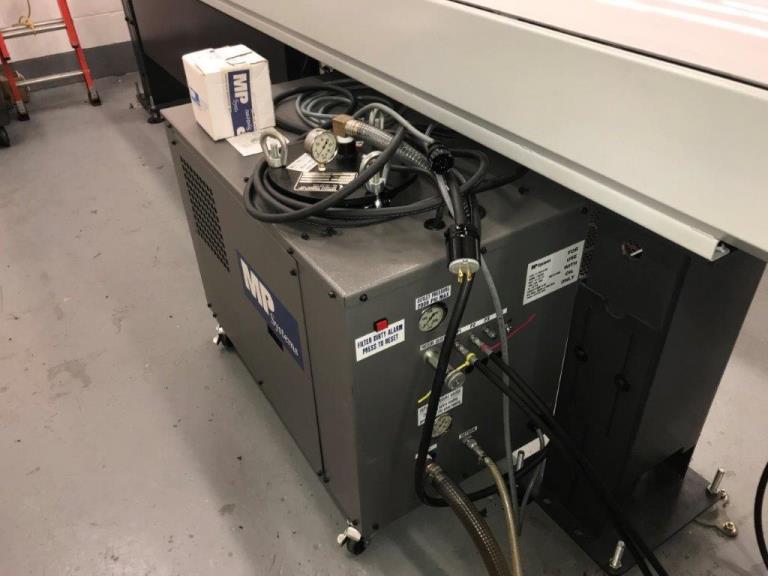

MP Systems 4-Line High Pressure Coolant System
Part Conveyor
Power On: 7400 hours
Operating Time: 4200 hours
Cutting Time: 2350 hours
General Specifications from OEM Brochure
Control Fanuc 18iTB
Controllable Axes 7 Axes
LCD 10.4" Mono
Machine
Max. rpm Main 10,000/Sub 8,000rpm
Max. Turning Diameter 20mm (0.787")
Indexing: Full C Main & Sub
Stroke 260mm (10.236")
Additional Positive Brake 1/1,000 degree
Rapid Traverse Rate 32m/min

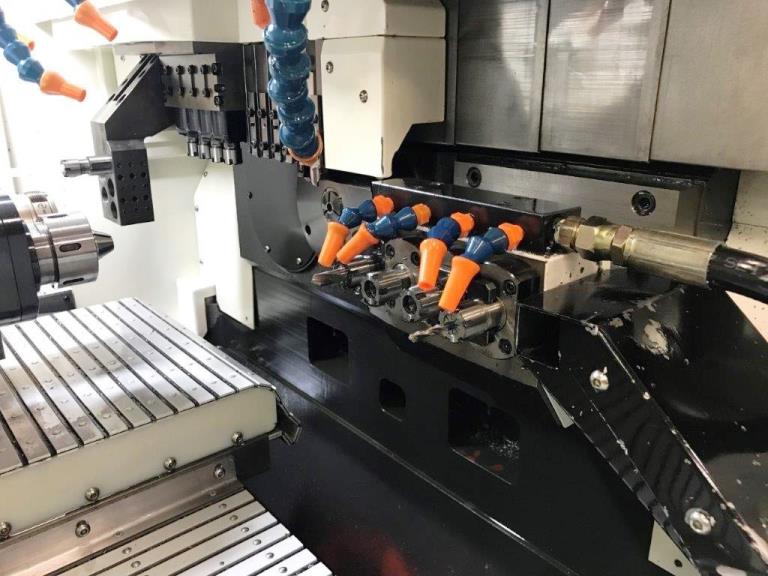

Tooling
O.D Tools 6
Front Work Tools 5
Cross Driven Tools 4
Back Work Tools 4 (3 live, 1 fixed)
Eccentricity Tools 2 (2 live next to sub spindle)
Motor
Main Spindle 2.2/3.7kW (3.0/5.0hp)
Sub-Spindle 1.5/2.2kW (2.0/3.0hp)
Cross Drill 0.55/1.1kW (0.7/1.5hp)
Back End 1.0kW (1.3hp)
Servo 1.0kW (1.3hp)
Coolant 0.75kW (1.0hp)
Coolant Tank Capa 200L (52.834 gal)
Lubrication Tank Capa. 1.8L (0.475 gal)
Center Height 1,000mm (39.259")
Weight 2,800kg (8,377 lbs)
