Specifications from OEM brochure and equipped with are described to the best

of our knowledge. ALL items should be confirmed by buyer.

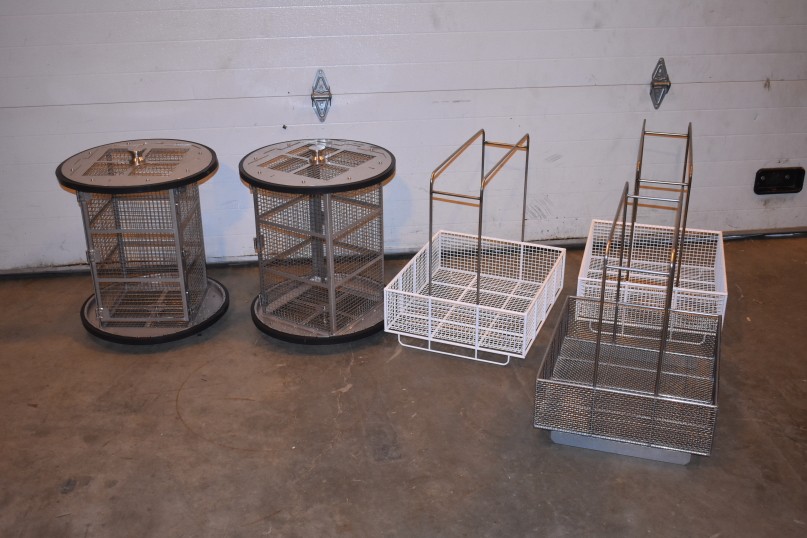

This unit has both 11x20" rotational & 11x11x20" standard baskets


Equipped With:
   Robotic Rigibot
   7 Stations (L/W/R/R/R/D/U)
   Rotational Baskets

General Specifications:
Station 1:                           Loading

Station 2:                           Ultrasonic Immersion Wash
                                     40kHz, 2500 Watts, 10 GPM

Station 3:                           Spray - Over Rinse

Station 4:                           Ultrasonic Spray-Over-Immersion Rinse

                                     120 Degree, 40kHz, 2000w


Station 5:                           Spray-Over-Immersion Rinse
                                     120 Deg, 40kHz, 2000W

Station 6:                           Recirculating Hot Air Dry
                                     180 Deg, 15000 Watts, 1800 CFM blower

Station 7:                           Unload

Basket Size:                         11" x 11" x 20"
Holding Capacity:                    800-820 Cubic Inches of Parts
Tank Material:                       Type 316L SS with #2B Finish

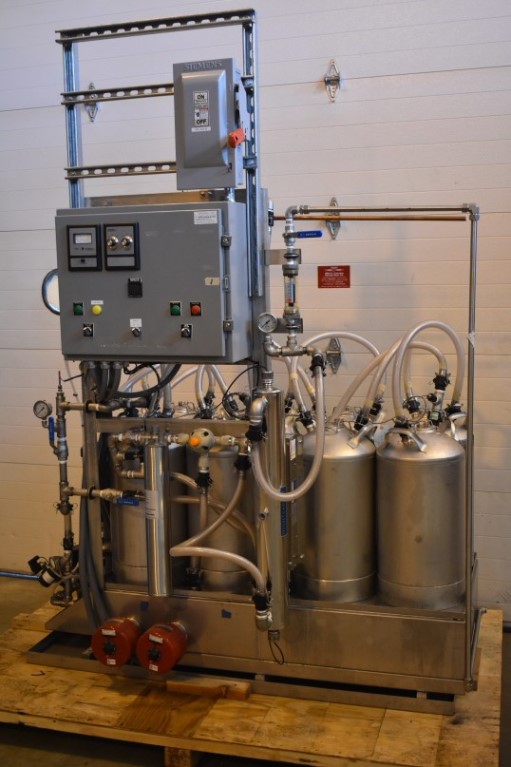

Closed Loop Water Conservation System
   6 GPM
   Incoming Filtration 5 Micron
   SS Holding Reservoir
   15000 Watts of Heaters
   Digital Temperature Control
   Four Carbon Bed Canisters
   Four Mixed Bed Canisters
   Ultraviolet Sterilizing
   Resistivity and Pressure Monitors
   Outgoing Filtration 5 Micron
   240V, 3 Phase

Automated Handling System, Rigibot CTS-2000
   PLC Controlled
   Lifiting Capacity:                150 lbs (Includes Work Basket)
   100 FPM Horizontal Travel
   17 FPM and .75in/s Vertical Travel
   Positioning Accuracy:             Horizontal: +/-0.36" - Vertical:+/-0.2"
   SS Cantivlered Arm
