To the best of our knowledge all details listed below are deemed correct. It

is the buyer's responsibility to confirm all details and we encourage an

inspection of the machine(s) and accessories prior to purchase.


===========================================================================

Pricing:
   CREST with       CLWS-3-STD.........   $28,500.00
   CREST without    CLWS-3-STD ........   $18,500.00
   CLWS-3-STD       Stand-a-Lone ......   $12,500.00

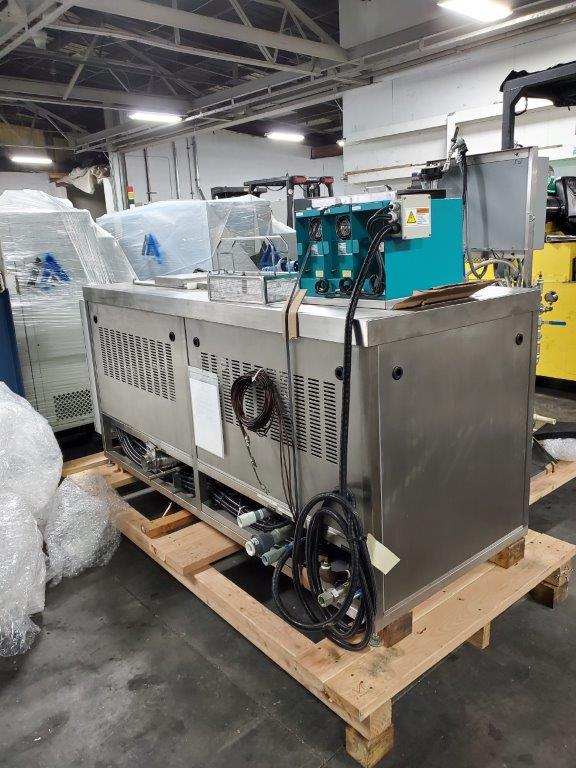

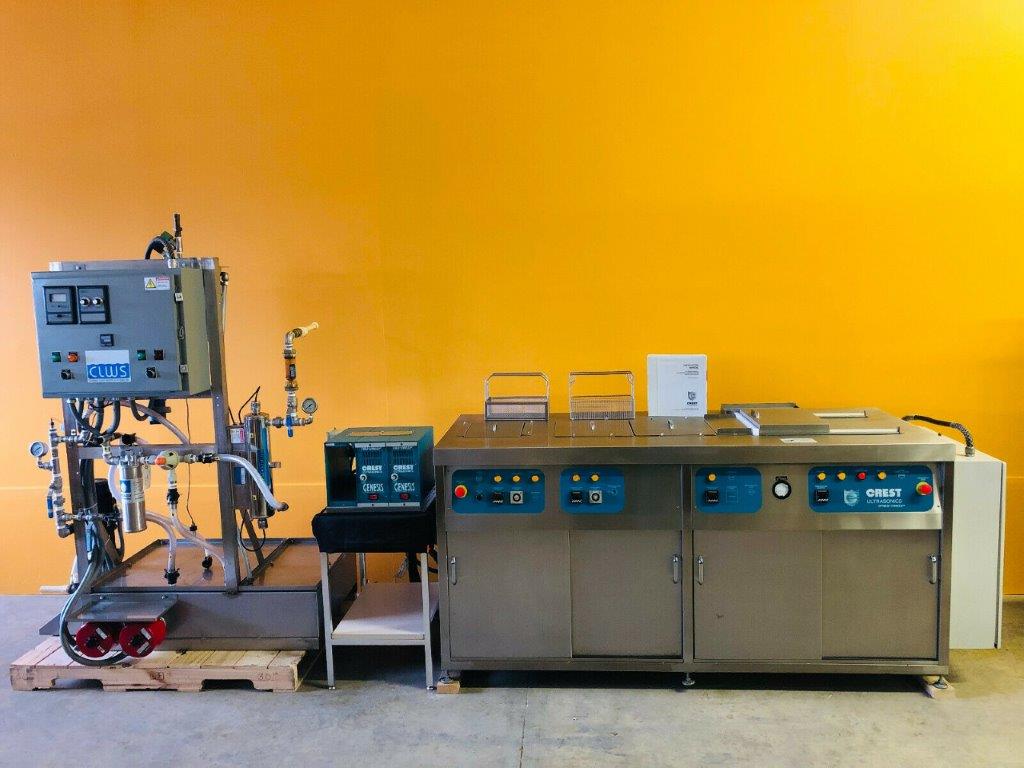

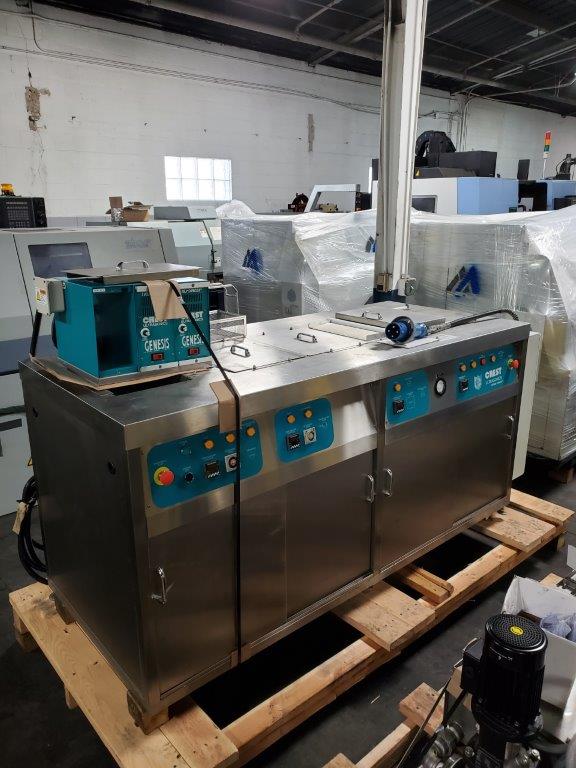

Equipped With:
   4 Stations (Wash/Rinse/Rinse/Dry)

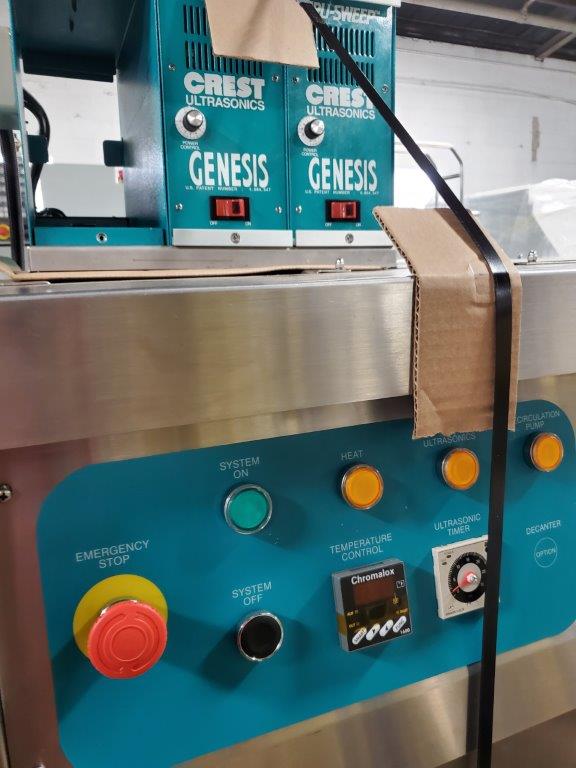

   (2) Crest 4G-500-6-T Adjustable Frequency Genesis Tru-Sweep Generators
   CLWS-3-STD, 3 GPM, Closed Loop Water Treatment System (* Below explanation)
   (6) Baskets
   Instruction Manual for Crest & CLWS-3-STD

OC4-1014-HE - Four Stations Optimum Console (Excellent condition)
Tank Dimensions:    10" l-r x 14" f-b x 10" d (8" liquid depth)
Overall Dimensions: 80" l-r x 34" f-b x 39" h
Process:            Wash, Rinse, Rinse, Dry
Chemistry:          Deionized Water
Automation:         None

Facilities:
   1-3 GPM (4-6 GPM on demand) DIW@ 1-12 Mohm, 30-35 psi and process
   temperature, 65-70 CFM CDA @ 30 psi, 1-2 CFM shop air @ 60 psi,
   unrestricted floor drain.
   Power Requirements:                    240 volts/60 Hz/3 phase.
   Work Flow:                             Left to Right.


System Detail:
Station #1:         Ultrasonic Immersion Wash
   Maximum Temperature: 160 F
   Ultrasonic Frequency: 40 kHz
   Ultrasonic Power: 500 watts of ultrasonic power provided by:
    Six (6) transducer modules direct-bonded to the bottom of the tank.
    One (1) Model CG-500-40-T ultrasonic generator.
   Heat: 2000 watts of strip heat.
   Temperature control: Digital indicating temperature controller with a
   RTD-type temperature probe.
   Filtration: A 5 GPM recirculation/filtration system with:
    One (1) wye strainer.
    One (1) centrifugal, mag-drive pump, with:
                    Ryton head.
                    Viton o-ring.
                    TEFC motor.
    One (1) 10", 10 micron cartridge filter housed in a stainless steel
    canister.
    One (1) analog pressure gauge.
    Manual flow control valves.
    One (1) recirculation returns surface sparger.
   Standard Features:
                    electronic ultrasonic cycle timer.
                    float-type low liquid level safety.
                    capillary bulb-type overtemperature safety thermostat.
                    basket positioner.
                    stainless steel lift off cover.
                    rear overflow weir plumbed to the recirculation system.
                    Plumbing:  Stainless steel compression fittings up to
                     1" OD.
                    Stainless steel threaded pipe 3/4_" to 1-1/2" wherever
                     necessary.

Station #2:         Ultrasonic Spray-Over-Immersion Rinse
   Maximum Temperature: 120 F
   Ultrasonic Power: 500 watts of ultrasonic power provided by:
    Six (6) transducer modules direct-bonded to the bottom of the tank.
    One (1) Model CG-500-40-T ultrasonic generator tank.
    One (1) Model MW 500 GTI 132 ultrasonic generator.
   Heat: 2000 watts of strip heat.
   Temperature control: Digital indicating temperature controller with a
    RTD-type temperature probe.
   Spray rinse: Stationary spray rinse package, with:
    One (1) set of parallel-opposed spray rinse headers that are:
     Fitted with removable nozzles.
     Located near the top of the tank.
     A solenoid valve on the incoming water line.
     The solenoid is controlled via a footswitch.
Standard Features:
                    electronic ultrasonic cycle timer.
                    float-type low liquid level safety.
                    capillary bulb-type overtemperature safety thermostat.
                    basket positioner.
                    stainless steel lift off cover.
                    side-located overflow weir plumbed to drain.
                    Plumbing: CPVC pipe and fitting for incoming and drain.

Station #3:         Spray-Over-Immersion Rinse
   Maximum Temperature: 120 F
   Ultrasonic Power: 500 watts of ultrasonic power provided by:
   Six (6) transducer modules direct-bonded to the bottom of the tank.
   One (1) Model CG-500-40-T ultrasonic generator.(optional)
   Heat: 2000 watts of strip heat.
   Temperature control: Digital indicating temperature controller with a
    RTD-type temperature probe.
   Spray rinse: Stationary spray rinse package, with:
    One (1) set of parallel-opposed spray rinse headers that are:
    Fitted with removable nozzles.
    Located near the top of the tank.
    solenoid valve on the incoming water line.
    The solenoid is controlled via a footswitch.
Standard Features:  A float-type low liquid level safety.
                    capillary bulb-type overtemperature safety thermostat.
                    basket positioner.
                    stainless steel lift off cover.
                    side-located overflow baffle with cascade flow to
                     Station #2.
                    Plumbing: CPVC pipe and fitting for incoming and drain

Station #4:         Recirculating Hot Air Dry
   Maximum Temperature: 180 F
   Heat 5000 watts of heat.
   Temperature control: Digital indicating temperature controller with a
    RTD-type temperature probe.
   Blower: An 1100 CFM recirculating blower in the updraft orientation.
   Blow-off: A stationary blow-off package, with:
                    One (1) set of parallel-opposed air blow-off headers
                    that are:
                     Located near the top of the tank.
                     solenoid valve on the incoming air line.
                     The solenoid is controlled via a pushbutton.
                     Cover: A manual sliding cover.
                     Plumbing: Stainless steel tubing and fittings and brass
                      valves.


System Notes: The general system specifications are as follows:
Tank Material:      Type 316L stainless steel with a #2B finish
Frame Material:     Type 304 stainless steel support frame with leveling legs.
Access Panels:      Type 304 stainless steel, lift-out access panels on the
                     sides and rear.
                    Type 304, #4 finish, stainless steel sliding access doors
                     on the front.
Countertop:         A type 304 stainless steel, removable, countertop. The
                     countertop will be fitted with a 304 stainless steel,
                    removable drainbacks (between the process stations).
Base Plate:         A type 304 stainless steel base plate.
Plumbing:           Complete hard plumbed process piping:
                     Individual fill and drain connections (at the rear
                     utility panel) will be provided for the wash station.
                    Common fill and drain connections (at the rear utility
                    panel) will be provided for the cascade rinse stations.
                    All appropriate flow control and isolation ball valves.

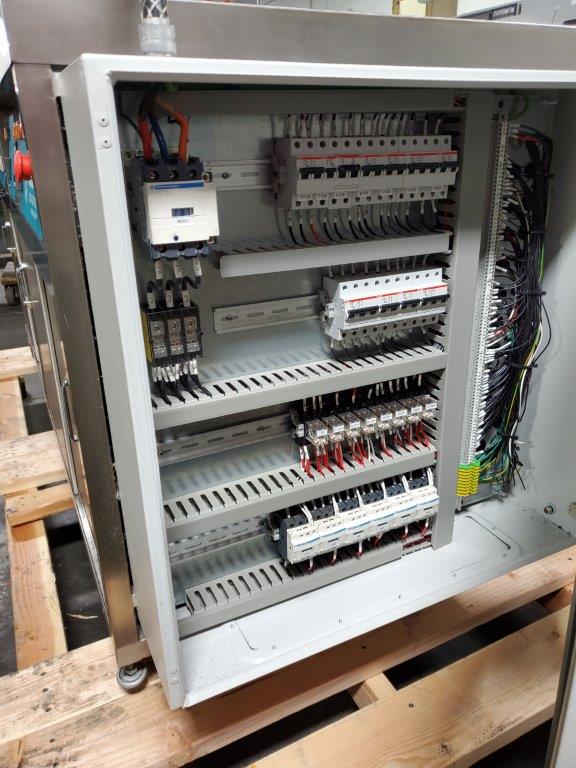

Electrical Box:     Single-point electrical connection located in an
                     end-mounted NEMA 12 enclosure.

Options:
   Item #2: 0.3 Micron HEPA Filter including a differential pressure gauge.
(Recommend maintenance replacement)

   Item #3: Basket: System Includes 4 ea.
   Model B-1014-4 Stainless Steel Work Basket. Fabricated from type 304
   stainless steel. Mesh size:
    " (other mesh sizes available). Design to hold 30 lbs. of parts.


The following option is over $20,000 new:

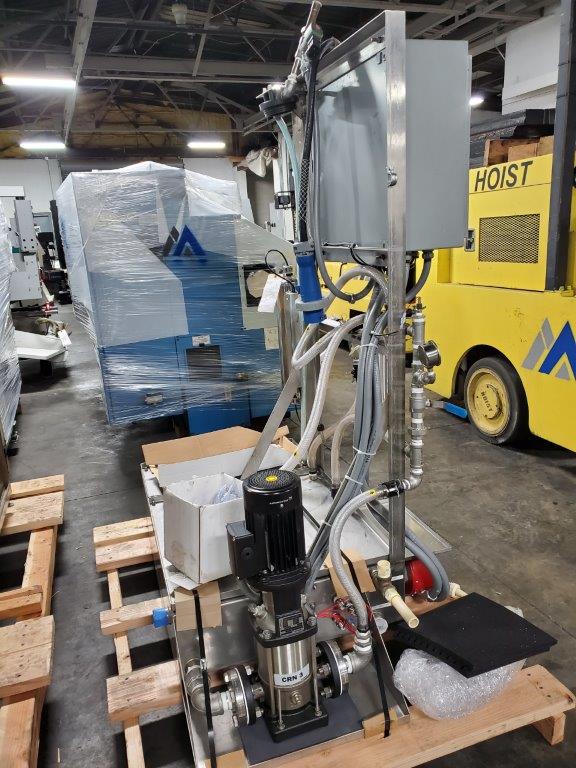

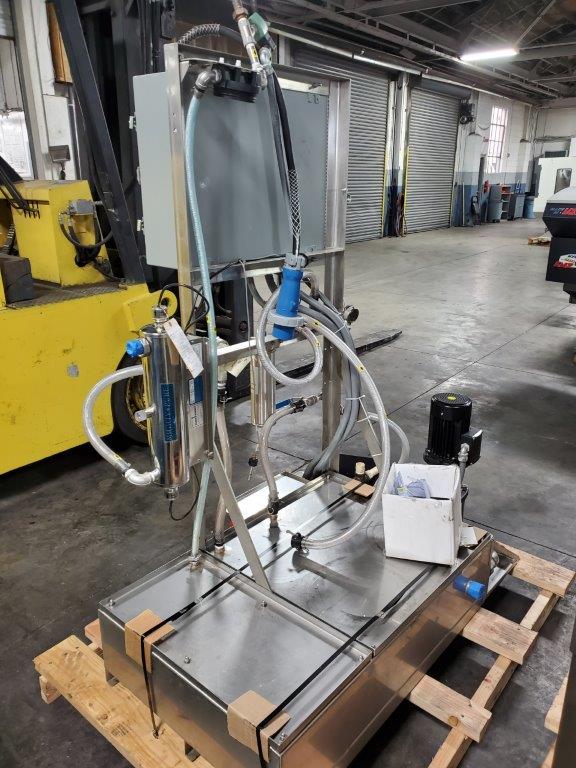

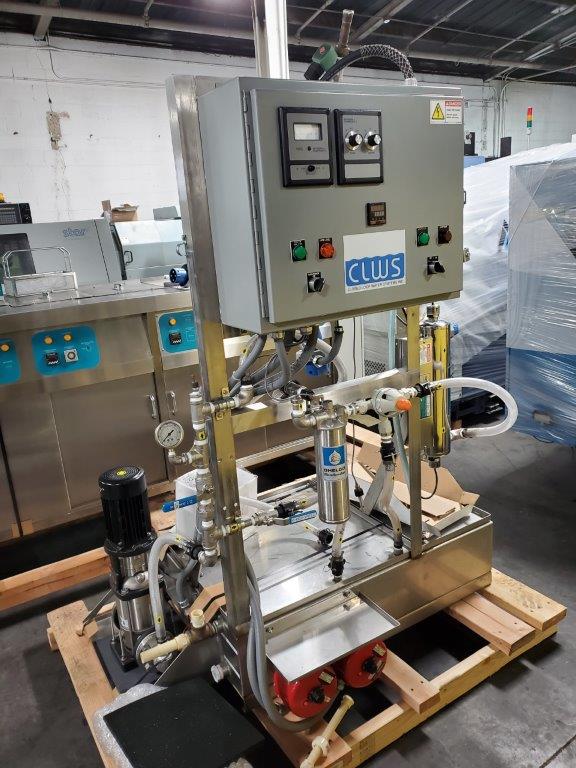

* Model CLWS-3-STD, Closed Loop Water Conservation System, System is designed

to provide DI water for final rinse of components and then recycle that water

for continuous reuse.  The CLWS will reduce water usage for the cleaning

system by 90% while providing spot free rinse of parts being cleaned.  System

returns water from final rinse tank to on board gravity fed heated reservoir.
Just rent the carbon and mixed bed bottles and this unit reprocesses at a 3-5

gpm rate the final rinse water. So instead of flowing 60 gallons of water down

the drain the CLWS saves 90% so the system is only dumping 6-10 gallons down

the sewer an hour.

Capacity:           5 gpm
Incoming Filter:    5 micron (from tap or RO source)
Reservoir:          A stainless steel holding reservoir,

                     with liquid level controls.
Heat:               15000 watts of screw-plug immersion

                     heat.
Temperature control:
                    Includes a digital indicating temperature control.
                    Includes an RTD-type temperature probe.
                    Includes over-temperature safeties.
Transfer pump:      A centrifugal pump, with a stainless steel head and
                     a TEFC motor.
Canister:
                    Canisters are NOT included.
   These canisters or  bottles can be leased and serviced by your local water

   treatment service company such as Evoqua with two each carbon and two each

   mixed Ion resin exchange
   A resistivity monitor.
   Sterilizing:     An ultraviolet sterilizing light.
   Monitors:        An analog pressure gauge
   Outgoing Filter: 5 micron
Power req's:        240 volts/60 Hz/3 phase.


Console Dimensions:                       80" x 34" x 38"

Crest Unit:                               88" x 35" x 52" 1,250 lbs
Fluid Tank:                               55" x 36" x 75" 475 lbs

Shipping dimensions (on pallet)
Crest Unit:                               96" x 48" x 61" 1,500 lbs
Fluid Tank:                               61" x 46" x 80" 600 lbs
