Note: this line was developed originally for pre-cleaning components prior to

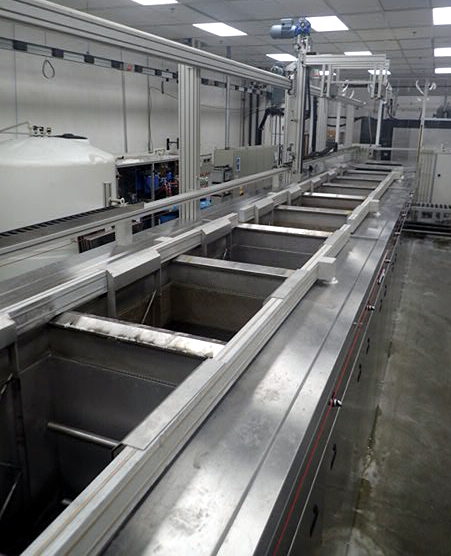

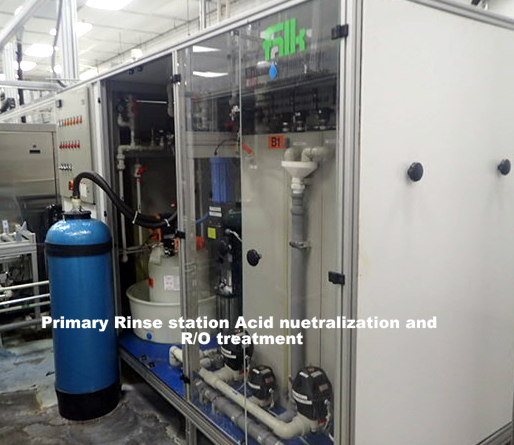

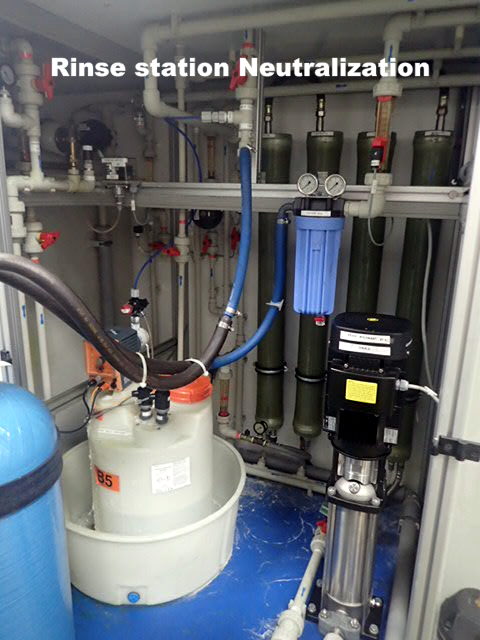

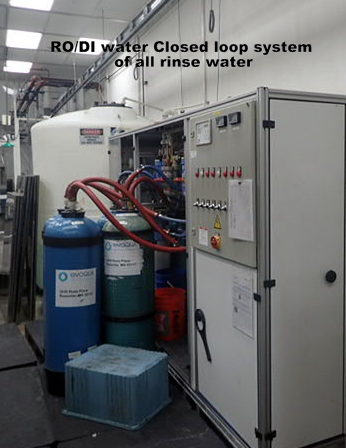

PVD vacuum coatings Includes complete closed loop R/O DI water treatment plant
along with acid and basic membrane filtration systems for minimizing waste
treatment.
*****
Equipment Description:
Construction: All the cleaning and rinsing tanks are installed in robust
profile-tube-frames.
Panels: The system is covered with panels made of removable polished
stainless steel.
Tanks: Cleaning and rinsing tanks are stainless steel 1.4435.

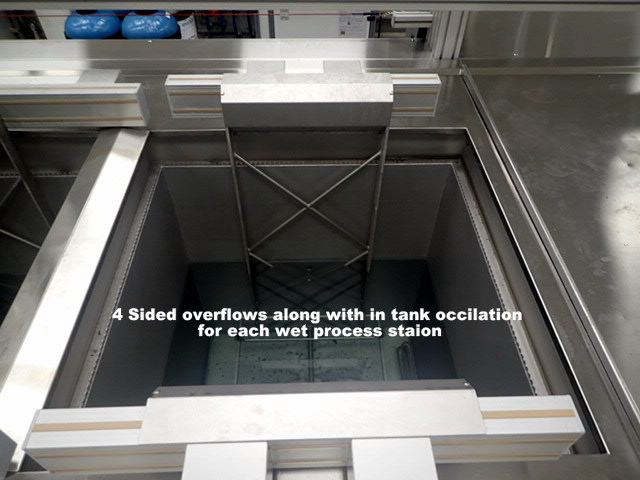

All the tanks have 4-sided serrated overflow. Tank bottom is inclined
for a total discharge.
Isolations: All tanks have thermo- and sound-isolation.
Piping: Piping for filling the tanks and for the DI-water circulation
are made of polypropylene.
Ultrasonic Resonators: Four (4) ultrasonic tublar resonators per tank, are
provided, installed at the wall side of the tanks. Total capacity per tank
equals to 6,000 Watt eff./12,000 watt peak. Working frequency 30 kHz.
Ultrasonic Generator: Fully automatic control and monitoring type MGR 30
operational frequency 30 kHz, 230V. Quick reacting micro-controller checks
the working frequency and keeps the ultrasonic capacity in very narrow
tolerances.
Detail Design

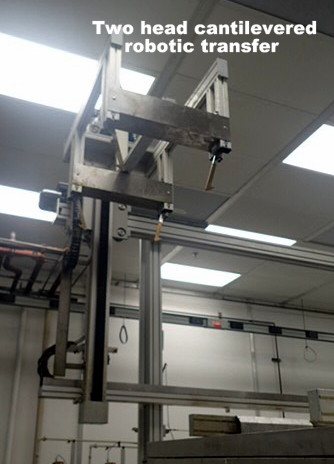

1-Robot; one from loading to tank 6
1-Robot; Tank 6 to unloading station
Tanks: W-R-W-R-W-R-R-R(DI)-R(DI)-R(DI)-VD-VD
Tank Size: 33.5" B x 33.5" W x 42" H
Basket Size: 19.5" B x 25.5" W x 33.5" H
W = Wash
R = Rinse
DI = Deionized Water
VD = Vacuum Drier
Tanks include heaters, oscillation mechanism. and ultrasonic transducers if
equipped. These items take up space in each tank.

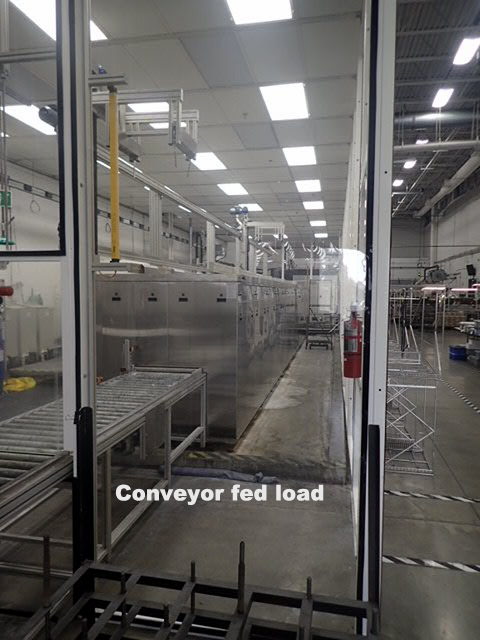

Loading Station
Tank 1: Ultrasonic Cleaning
Tank 2: Rinsing RO-water
Tank 3: Ultrasonic Cleaning
Tank 4: Rinsing RO-Water
Tank 5: Ultrasonic Cleaning
Tank 6: Rinsing RO-Water
Tank 7: Rinsing RO--Water
Tank 8: Ultrasonic Rinse DI-Water
Tank 9: Rinsing DI-Water
Tank 10: Rinsing DI-Water - Slow Pull

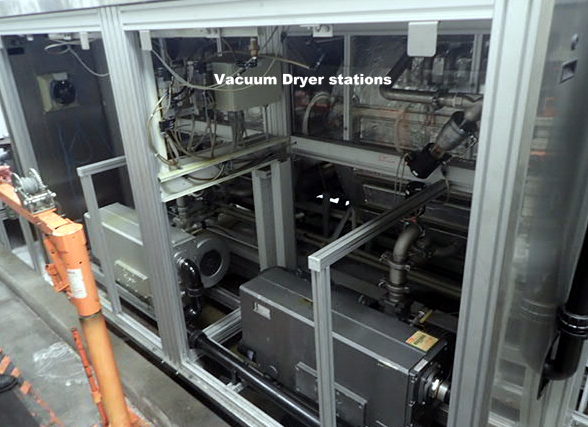

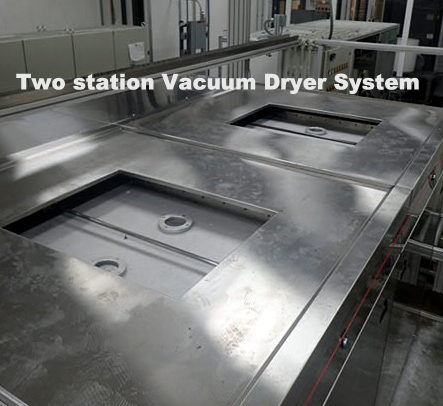

Tank 11: Vacuum Drier with Heat
Tank 12: Vacuum Drier with Heat
Unload Station
** Detailed Information Available Upon Request **
Technical Data:
Compressed Air: 6 Bar, Clean and Oil Free For The
Operation with Solenoid Valves
Tab Water: 3-4.5 Bar
