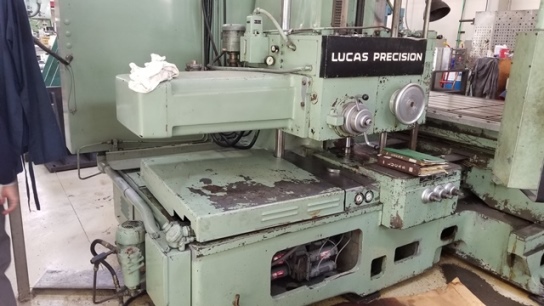

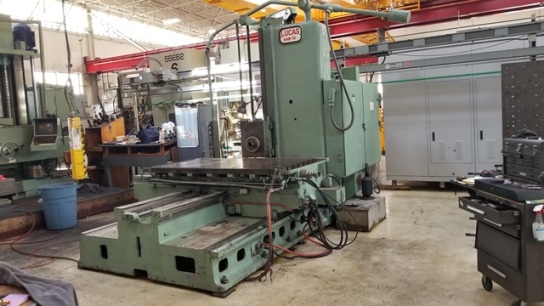

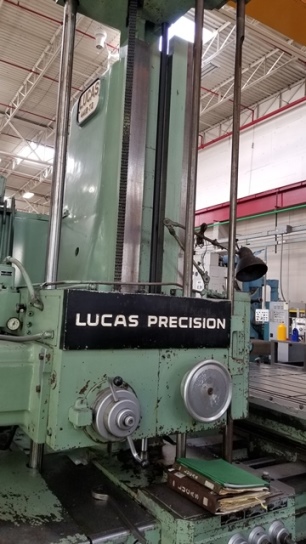

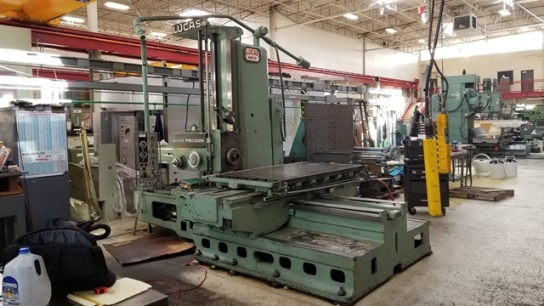

4", LUCAS 441B-72, 42" vertical, 72" cross, 50 Taper, 36x74" table   Our stock number: 400810

4 , LUCAS 441B-72, 42 vertical, 72 cross, 50 Taper, 36x74 table

Click on picture below for larger version
4 , LUCAS 441B-72, 42 vertical, 72 cross, 50 Taper, 36x74 table4 , LUCAS 441B-72, 42 vertical, 72 cross, 50 Taper, 36x74 table4 , LUCAS 441B-72, 42 vertical, 72 cross, 50 Taper, 36x74 table4 , LUCAS 441B-72, 42 vertical, 72 cross, 50 Taper, 36x74 table
4 , LUCAS 441B-72, 42 vertical, 72 cross, 50 Taper, 36x74 table4 , LUCAS 441B-72, 42 vertical, 72 cross, 50 Taper, 36x74 table4 , LUCAS 441B-72, 42 vertical, 72 cross, 50 Taper, 36x74 table4 , LUCAS 441B-72, 42 vertical, 72 cross, 50 Taper, 36x74 table

"To the best of our knowledge all details listed below are deemed correct. It

is the buyer's responsibility to confirm all details and we encourage an

inspection of the machine(s) and accessories prior to purchase."


Equipped with:
   Tool Lock Spindle

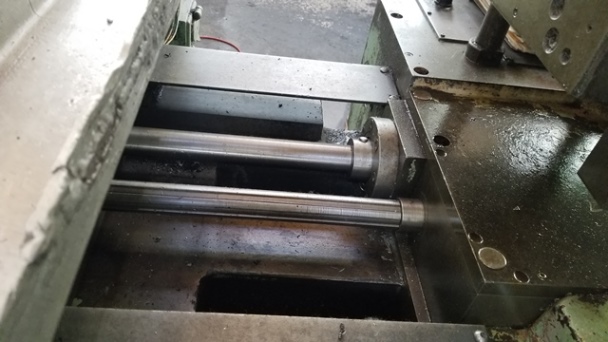

   Vertical axis fitted with a ball screw for higher tolerance parts

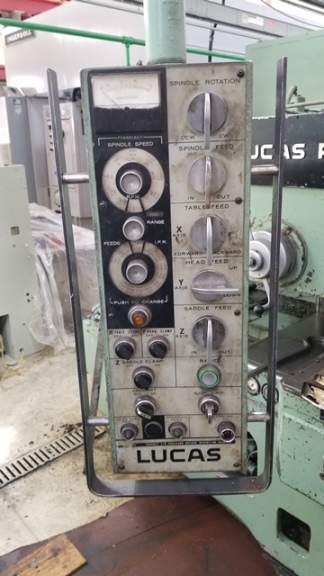

   Pendant control operates: spindle, table, head, saddle, speeds, feeds

Note: selling machine only; rotary table, angle plates, etc sold separately


Spindle
   Spindle Size                       4 "
   Spindle Taper                      50 NST
   Spindle Speed                      1550 rpm
   Spindle Travel                     24
   Spindle Motor                      15 hp

Travels:
   X-Axis Travel of Table             72 "
   Y-Axis Vertical Travel of Head     60 "
   Z-Axis Longitudinal Travel         72 "
Length of Saddle                      102 "

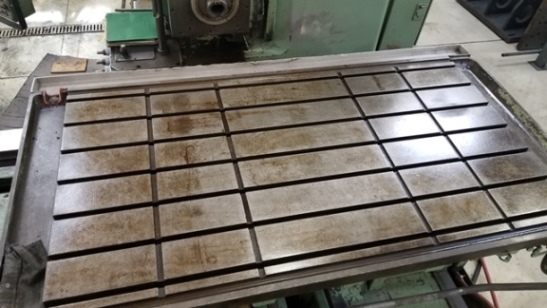

Table
   T-Slotted ( WxL )                  42" x 74"
   Capacity                           30,000 lbs

Machine Dimensions (approx):          156" x 110" x 115"H
