3" x 3" x 3/8", DURMA PBH-80, New, 9.72" roll dia, Horz / Vert,   Our stock number: 396275

3 x 3 x 3/8 , DURMA PBH-80, New, 9.72 roll dia, Horz / Vert,

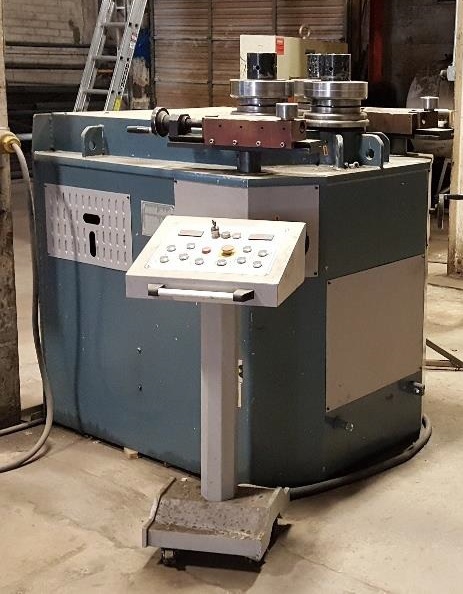

Click on picture below for larger version
3 x 3 x 3/8 , DURMA PBH-80, New, 9.72 roll dia, Horz / Vert,

DURMA - PBH 80 PROFILE BENDER

Specifications are from OEM Brochure, buyer should confirm all details


Tonnage                             80 Ton
Standard Cap for Angle Leg-Out      3" x 3" x .375 (see below for more specs
Shaft Diameters                     3.35"
Roll Diameters                      9.72"
Motor Power                         10 HP
Turning Speed                       22.9 FPM
Dimensions                          62.2" L x 47.2" W x 55.5" H
Weight                              5,181 lbs.

FEATURES
Three Roll Driven
Steel Construction
Standard Universal Rolls
Hardned Rolls
Mechanical lateral guide rolls
Programmable digital and vertical operation

OPTIONS:
Special support rolls for tube, profiles, cap rail, etc
Special support rolls for angle iron leg/in


                                    Dimensions (in)   Minimum Internal
                                                      Diameter (in)
Solid-Square                        2"x2"             25"
                                    1.125"1.125"      11"
Flat-Along Edge                     3"x.750"          19"
                                    1.250"x.375"      13"
Solid-Rectangle                     4.750"x1.125"     25"
                                    2"x.750"          11"
Angle Leg-Out                       3"x3"x.375"       32"
                                    1"x1"x.125"       18"
Angle Leg-In                        3"x3"x.375"       47"
                                    1"x1"x.125"       18"
T-Section Leg-Down                  3"x.375"          39"
T-Section Leg-Out                   3"x.375"          39"
T-Section Leg-In                    3"x.375"          51"
Tubing-Square                       2.5"x2.5"x.125"
Tubing-Rectangular                  3.5"x1.5"x.125"
Solid-Round                         2"                24"
                                    0.750"            13"
Schedule 40 Pipe                    3"                39"
                                    3/4"              12"
Tubing -Round                       4"x.100"          52"
C-Section Leg-Out                   C6 x 13#          28"
C-Section Leg-In                    C6 x 13#          36"
I-Section Leg-In/Out                S4 x 7.7#         23"
OPTIONS:

General spcification are from OEM Brochure, buyer should confirm all details
