ChipBLASTER D-30-70, 8 GPM, 1000 PSI, Dual Cartridge Filters, Single Outlet   Our stock number: 316281

ChipBLASTER D-30-70, 8 GPM, 1000 PSI, Dual Cartridge Filters, Single Outlet

Click on picture below for larger version

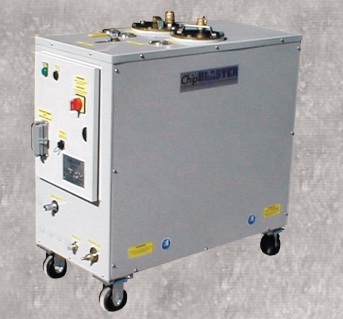

ChipBLASTER D-30-70, 8 GPM, 1000 PSI, Dual Cartridge Filters, Single Outlet

General Specifications as per Brochure:

Pressure:                                 1000 PSI
Coolant Volume:                           Fixed Volume
                                          8 GPM
Filtration:                               Dual Cartridge
Outlets:                                  1

Equipped With:
  Dry Run Pump
  Transfer Pump
  Dual Filters (10 micron)
  Adjustable PSI Valve
  Error Signal Output
  Dry Filter Alarm


Standard Configuration:
ChipBLASTER "D" is pressure fed by the standard on board transfer pump,

through the filter vessel, to the inlet of the positive displacement pump

"M" Code Requirement:
A Set of "M" Codes Will Be Required for Activation / Deactivation of the
ChipBLASTER. A 110 VAC or 24 VDC Signal is Needed
* If your machine uses pulsed "M" Codes please contact ChipBLASTER

Required Electrical Power:
  D16 - 15 amps, 230 VAC, 3 Phase, 60 Hz
  D20 - 30 amps, 230 VAC, 3 Phase, 60 Hz
  D30 - 30 amps, 230 VAC, 3 Phase, 60 Hz

Ideal For Machine Tools up to 15 Kw (20 HP) & 40 Taper Mills

See Brochure for more details and options.
