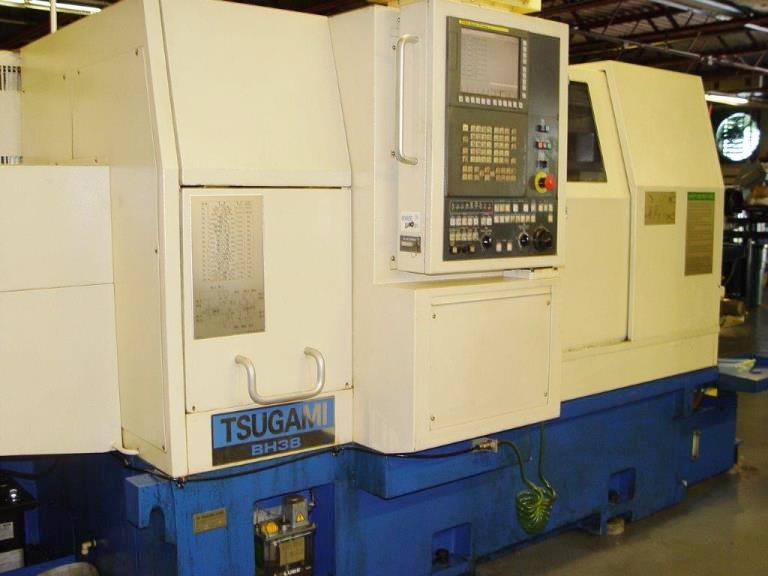

1-1/2" TSUGAMI BH38, 2006, Fanuc 31iT, Gang-Turret 11-axis, Sub spindle, FMB Automatics & Machinery Co Inc

1-1/2" TSUGAMI BH38, 2006, Fanuc 31iT, Gang-Turret 11-axis, Sub spindle, FMB Our stock number: 393382

1-1/2 TSUGAMI BH38, 2006, Fanuc 31iT, Gang-Turret 11-axis, Sub spindle, FMB

Click on picture below for larger version

Equipped with (to be confirmed):

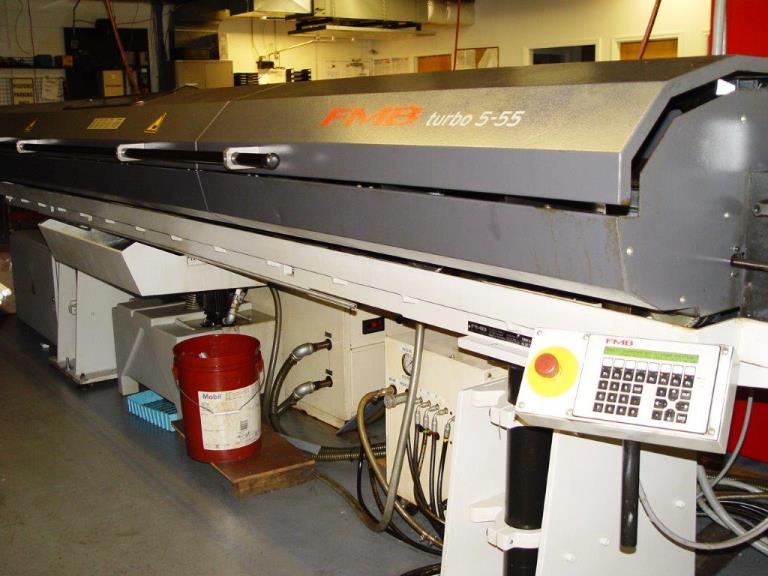

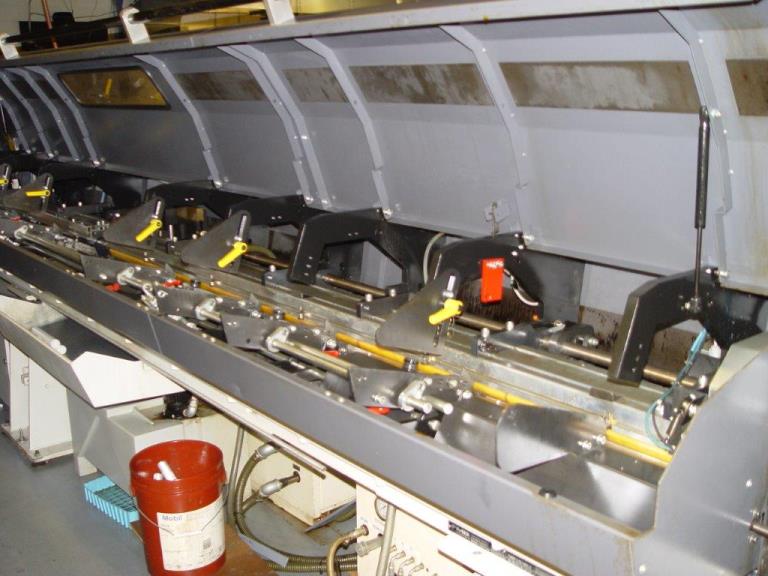

FMB Turbo 5-55 Magazine Bar Feed

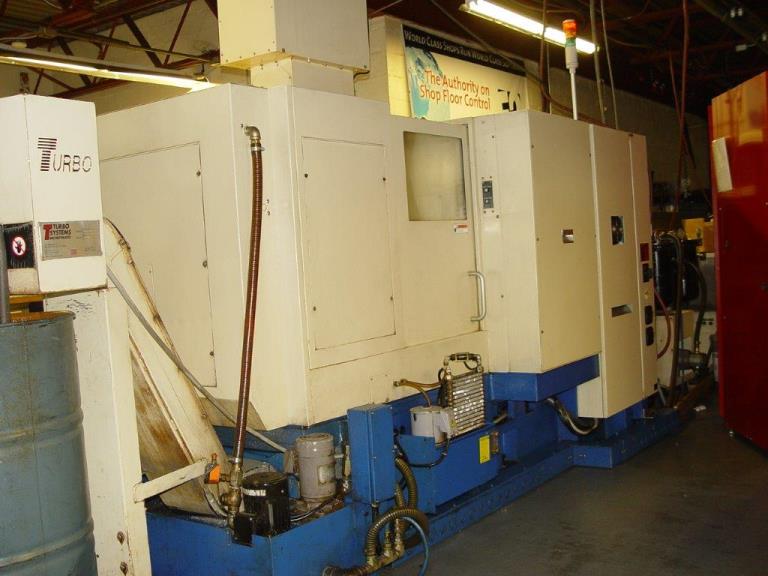

LNS Turbo Chip Conveyor (rear discharge)

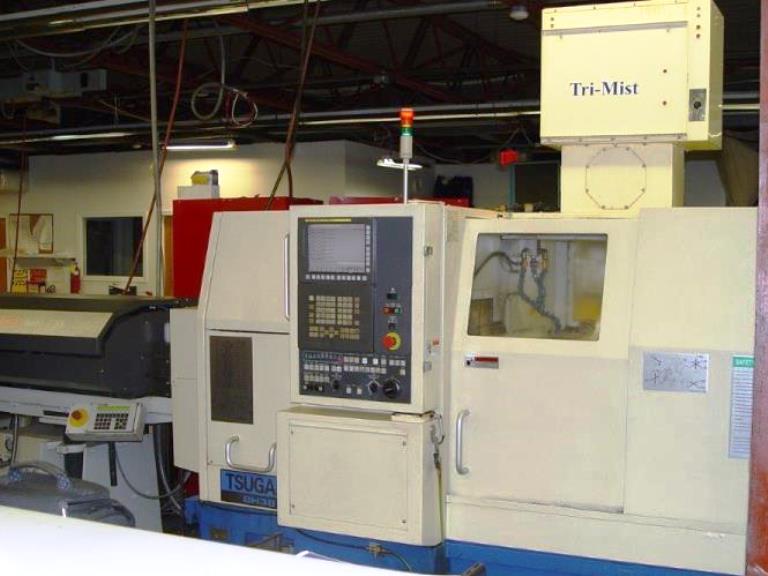

Tri-Mist Mist Collector
Turmoil Oil Chiller
MP Systems 1000 psi 4-port High Pressure Unit with Bushing Blaster
Part Conveyor
Part Catcher
Misc Tool Holders (not all tooling shown in pics included)
    (3) 3263-Y341 Cross Drills
    (2) 3263-Y361 High Speed Cross Drills
    (1) 3263-Y351 High Speed Face Drill

Approx Run Hours: 14,500



GENERAL SPECIFICATION FOR A TSUGAMI BH38SY
(Details to be confirmed by the buyer)

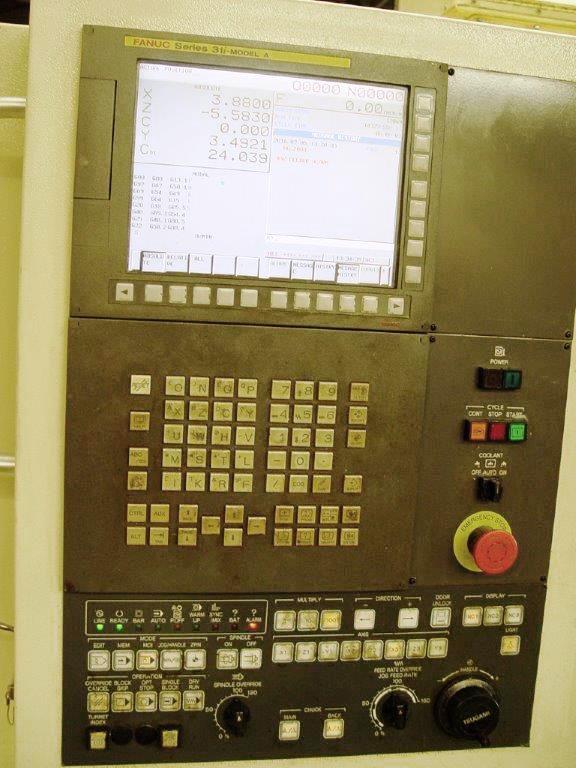

Control:                             Fanuc 31i-A

Headstock:
Turning Diameter                     Max: 1.496
Turning Length (in.)                 Max: 9.842
Bar Capacity (in.)                   Std: 1.500
Collet Type/Capacity:                1.625

Main Spindle:                        5000 RPM
Motor:                               15 HP
Sub-Spindle: (Standard)              7000 RPM
Sub spindle Motor:                   7.30 HP

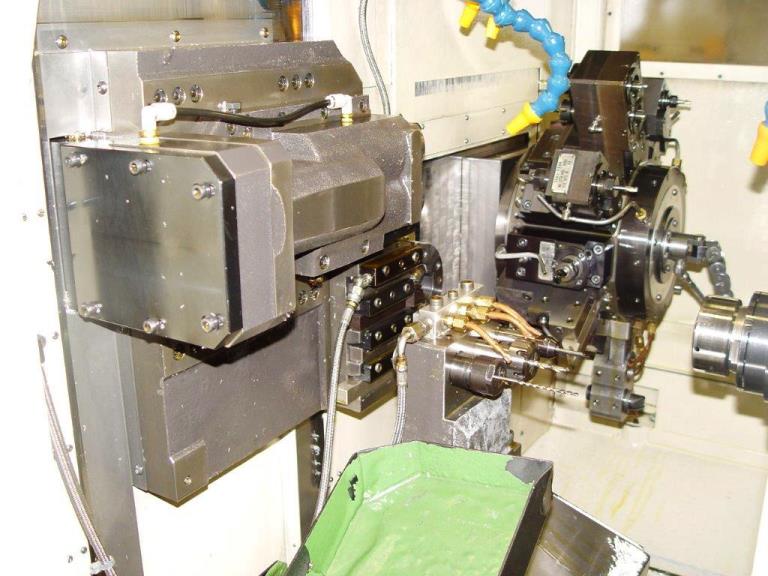

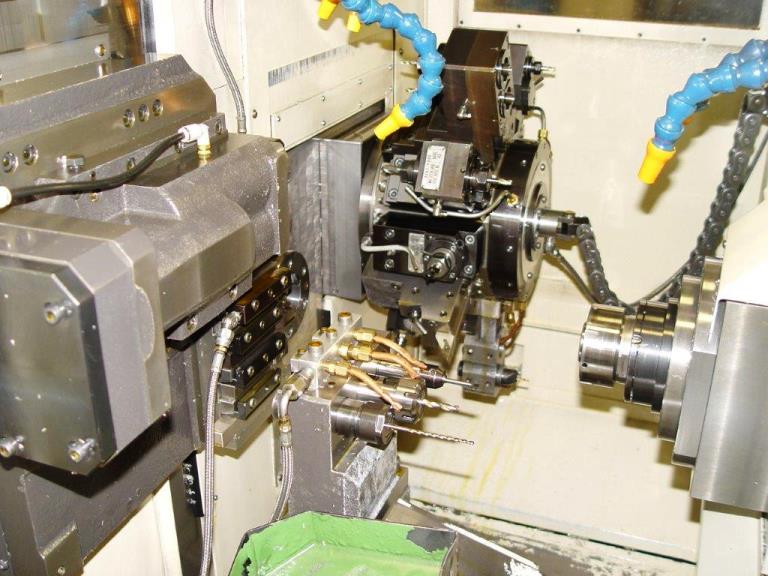

12-Station Turret
Max Tools                            12 WITH 4 Rotary
Tool Shank Size (in.):               Square: 0.750  Rotary: 0.393
Rotary Tool Spindle:                 8,000 RPM
Rotary motor:                        1.90 HP

Front Post
Max Tools                            4 Turning plus 2 Rotary
Tool Shank Size (inch):              Square: 0.625  Rotary: 0.310
Rotary Tool Spindle:                 8000 RPM
Rotary Tool Power:                   1.30 hp

WEIGHTS AND MEASURES
Length  107" x 71" x 67"H
Weight  13,000 lbs.


A combination turret / gang machine, the BH38SY combines all of the benefits

of a traditional Swiss turn with the flexibility and capability of a turret

machine.  With 38mm (1-1/2") main spindle capacity and a two axis sub spindle,

the BH38SY is one of the most able machines on the market.


The BH38SY's 15HP main spindle has been constructed with Tsugami's award

winning double-spindle design - allowing for maximum metal removal while

maintaining the most exacting tolerances.  A 10HP, 2 axis sub spindle allows

for shortened cycle times.  Its solid cast iron base provides superior

rigidity and cutting capabilities.
