Rotary / Wobble Broaching on Swiss Type CNC Machines is becoming a cost

effective way to produce hex and hexlobular drive features in one operation.

The Broaching process takes only seconds to produce the profile and parts can

be finished complete out of the machine without the need for the broaching to

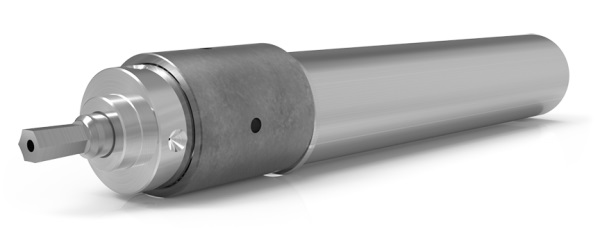

be performed as a secondary operation. Genevieve Swiss-Type broach holders are

designed specifically to make broaching fast & easy to perform in machines

such as Citizen, Star, Tsugami, Tornos & other Swiss Turning centers.

 - No Center Indicating Required
 - Low Profile: Fits ost Small Machines with Minimal Interference
 - Customizable Shank Length, No Need for Bushings
 - Short Head Length Ideal for Sub-Spindle Applications

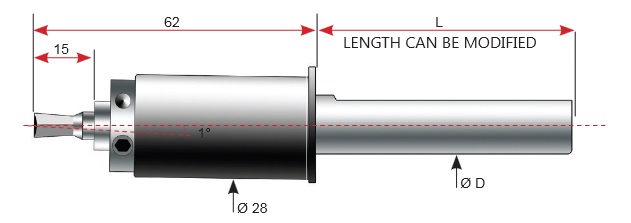

2160 Series

Part No.           D      L


RBH-2160-120-038   12mm   38mm
RBH-2160-140-038   14mm   38mm
RBH-2160-160-038   16mm   38mm
RBH-2160-200-100   20mm   100mm
RBH-2160-220-100   22mm   100mm
RBH-2160-250-120   25mm   120mm
RBH-2160-158-038   5/8"   38mm
RBH-2160-190-100   3/4"   100mm
RBH-2160-254-120   1"     120mm

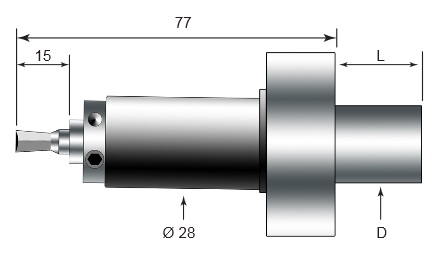

2160 Series - Flange Mount For STAR Machines

Part No.                  D       L        Machine Type

RBH-2160-160-038-MBG-T16  22mm    25mm     SR10, SR20, SR32, ECAS20


Prices subject to change.
