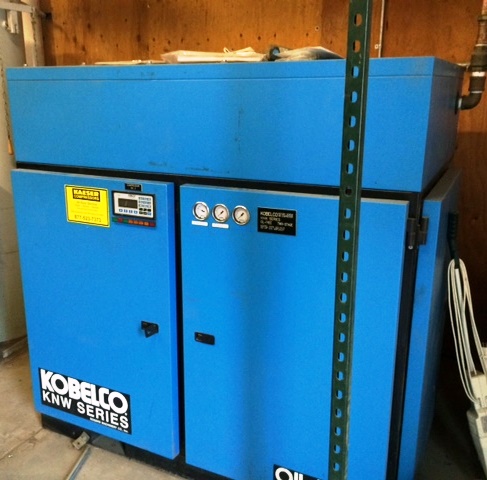

172 CFM, 150 PSI, KOBELCO, No. KNW AO-A/H, 50 HP, 1996, Rotary Screw   Our stock number: 390849

172 CFM, 150 PSI, KOBELCO, No. KNW AO-A/H, 50 HP, 1996, Rotary Screw

Click on picture below for larger version
172 CFM, 150 PSI, KOBELCO, No. KNW AO-A/H, 50 HP, 1996, Rotary Screw172 CFM, 150 PSI, KOBELCO, No. KNW AO-A/H, 50 HP, 1996, Rotary Screw172 CFM, 150 PSI, KOBELCO, No. KNW AO-A/H, 50 HP, 1996, Rotary Screw172 CFM, 150 PSI, KOBELCO, No. KNW AO-A/H, 50 HP, 1996, Rotary Screw

Specification from OEM Brochure (All details should be confirmed by buyer)

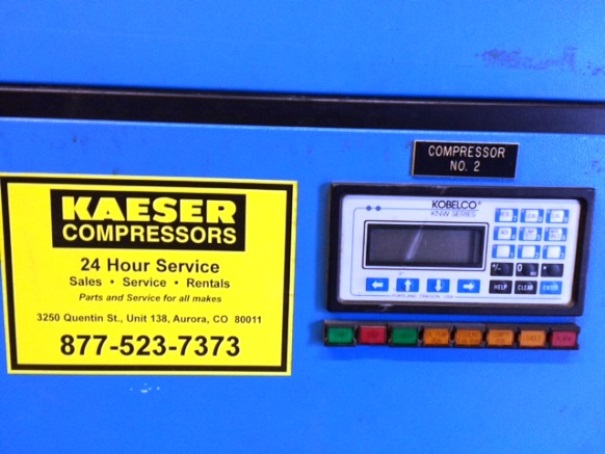

Controls and Instrumentation
Service Indicators
    Air inlet filter condition indicator
    Oil filter condition indicator
    Oil level gauge
    Routine maintenance
Pressure Indicators
    First stage air discharge pressure
    Second stage air discharge pressure
    Oil pressure
Temperature Indicators
    First stage air discharge
    Second stage air inlet
    Second stage air discharge
    Lube oil
    Compressor discharge temperature
Additional Indicators
    Stand-by mode light
    Oil pump run light
    Fan run light
    Compressor run light
    Compressor load light
    Alarm light
    Hour meter - running time
    Hour meter - loaded time
    Manual unload light and switch
    Pre alarms

Specifications:
    CFM:                          172
    PSI:                          150
    HP:                           50
    Voltage:                      480V
    S/N:                          96F0437

Machine:  41.5" x 50" x 67"  1,500 lbs
